A damaged abutment should not be treated as a simple prosthetic inconvenience. A stripped screw head, fractured screw, distorted abutment interface, or cold-welded connection can quickly become an implant-level complication if excessive torque or lateral force is applied. Executing a proper abutment removal instrument technique is not simply a matter of applying more force. It begins with confirming the restoration design, identifying the source of resistance, and selecting an instrument intended to transmit controlled force without damaging the implant body, internal connection, or surrounding soft tissue.
For implant clinicians, the objective is clear: retrieve the abutment or restoration as conservatively as possible, preserve reusable components when clinically appropriate, and leave the implant platform ready for inspection and re-restoration. The overall abutment removal instrument technique changes according to whether the case involves screw retention, cement retention, a fractured screw, cold welding, damaged screw access, or a component that is not compatible with the intended retrieval instrument.
Identifying the Cause Before Applying Any Abutment Removal Instrument Technique
Abutment removal should not begin until the retention mechanism is understood. A screw-retained crown or bridge may remain seated because the retaining screw is still engaged, the screw head is stripped, the access channel is obstructed, or the abutment has become bound at the connection. A cement-retained restoration presents a different problem: the prosthesis may need to be sectioned or removed before the abutment can be evaluated independently.
Radiographic review is useful when the restoration design, implant platform position, or component relationship is uncertain. Clinical inspection should also confirm whether the restoration is implant-level or abutment-level, whether soft tissue has grown over the interface, and whether there is evidence of fracture, mobility, peri-implant inflammation, or damage to the prosthesis.
This distinction matters because an instrument designed to separate an abutment after screw release is not a substitute for screw-retrieval equipment. Likewise, an abutment removal instrument technique should not be used to overcome a cemented crown that remains fully retained. Forcing the wrong interface can deform a screw, scar the implant connection, fracture ceramic, or transmit undesirable lateral load to the implant.
Pre-Removal Assessment Protects the Implant Connection
Before engaging a removal instrument, establish clean access and adequate visibility. Remove restorative material from the screw channel when applicable, identify the screw-drive interface, and clear debris that could prevent complete driver seating. Magnification, illumination, and isolation are particularly valuable when the access channel is narrow, angled, or obscured by composite or cement.
Confirm the implant system, connection geometry, abutment type, and driver compatibility. Tissue-level and bone-level implant restorations present different access and component relationships, and compatible instruments should be chosen accordingly. A driver that appears to fit but does not fully engage can round the screw interface and complicate an otherwise straightforward retrieval.
The clinician should also determine whether the abutment screw has been completely disengaged before attempting abutment separation. If screw removal is incomplete, an axial abutment removal instrument technique may create damaging stress at the implant-abutment connection. When resistance is disproportionate to the clinical finding, stop and reassess rather than escalating force.

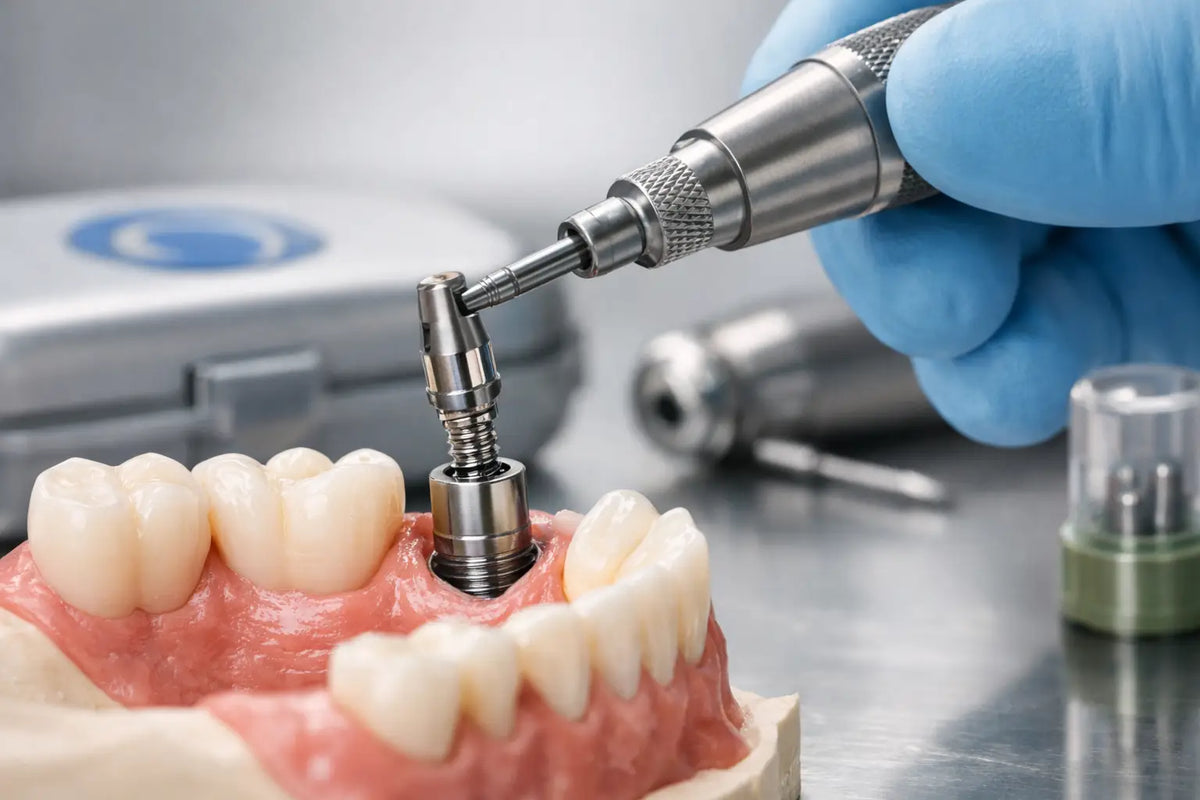

Master the Abutment Removal Instrument Technique: A Controlled Sequence
A predictable retrieval sequence limits improvisation. The following approach is intended as a clinical framework, not a replacement for the implant manufacturer's instructions for use, component-specific protocols, or professional judgment.
Establish direct, stable access
Position the patient and handpiece or instrument path so force can be delivered in line with the implant's restorative axis whenever possible. Retractors, suction, and soft-tissue protection should provide a clear working field without obstructing the instrument. If access is compromised by restoration contours, limited opening, or posterior position, the case may require a different instrument design or a modification to the restoration before retrieval can proceed safely.
Release the retaining screw completely
Use the correctly matched implant driver with complete engagement in the screw head. Maintain axial pressure during driver use to reduce cam-out and protect the screw interface. Once the screw is removed, inspect it for thread distortion, wear, fracture, or debris. A damaged screw should not be casually reused simply because it was retrieved intact.
If the screw head is stripped or fractured inside the fixture, stop before applying separation tools. Continued attempts to pull the abutment while the screw remains partially engaged can damage both the internal connection threads and the fixture.
Engage the removal instrument at its intended interface
Specialty abutment removal instruments are designed to engage a specific abutment feature or restorative interface. Use the instrument only where its design indicates and only with components confirmed to be compatible. Avoid using explorers, hemostats, crown removers, or improvised leverage points against the implant platform or soft tissue.
Products such as Solutem specialty instruments and the Evidence Implant EZ-SEP Abutment Remover are categorized for abutment removal because the procedure requires a controlled engagement method distinct from implant removal or osteotomy adjustment. When selecting specialized solutions, distinguish between separation tools and retrieval kits.
If the screw is removed but the abutment or prosthesis still will not disengage due to cold welding or tight internal connections, controlled vertical separation is needed. In contrast, if the screw head is stripped or fractured inside the fixture, clinicians should rely on a dedicated guide-based system like the Surgident Implant Surgical Screw Removal Kit to safely centered-drill and extract the fragment without damaging internal implant threads.
Clinical Decision Framework: Abutment & Screw Complications
| Clinical situation | Main problem | Recommended solution |
| :--- | :--- | :--- |
| Screw removed, but abutment will not disengage | Stuck abutment / cold welding / tight connection | Evidence Implant EZ-SEP Abutment Remover |
| Screw head stripped | Driver cannot engage screw head properly | Surgident Implant Surgical Screw Removal Kit |
| Screw fractured inside fixture | Broken screw fragment inside implant | Surgident Implant Surgical Screw Removal Kit |
| Abutment distorted after screw removal | Component separation needed | Evidence Implant EZ-SEP Abutment Remover |
Apply controlled, axial force
After the instrument is seated, apply gradual and measured force along the intended path of removal. Sudden impact, repetitive rocking, or side-to-side prying may increase the chance of damaging the internal connection, distorting the abutment, or stressing the implant and supporting bone. Some cases release with minimal force once the screw is removed; others remain retained because of biological debris, cold welding, cement contamination, or component deformation.
If the abutment does not release with controlled application, reassess the diagnosis. Check again for residual screw engagement, restorative interference, cement, tissue impingement, and instrument seating. Force should not become the primary troubleshooting strategy.
Inspect before reassembly
Once the abutment is retrieved, inspect the implant platform and internal connection under magnification. Look for debris, scratches, deformation, damaged threads, or retained fragments. Assess the abutment separately for wear, fracture, and connection damage. Clean the interface according to the implant system protocol before placing a new or clinically acceptable component.
Document the reason for retrieval, the condition of the screw and abutment, any connection findings, applicable FDA and CE references, and the prosthetic components items used. This record is useful if the restoration requires laboratory revision or if the case develops a recurring complication.
Choosing the Right Abutment Removal Instrument Technique for Complications
When sourcing an abutment retrieval instrument, evaluate the intended indication first, then confirm system compatibility, engagement design, sterilization requirements, and available manufacturer documentation. Procurement teams should avoid grouping abutment removal, implant removal, and general extraction instruments into one interchangeable category. They address different mechanical interfaces and clinical risks.
Keep specialty instruments with the implant restorative setup rather than only in a general surgical tray. A practical chairside kit should include matched drivers, vertical separation tools like the Evidence Implant EZ-SEP Abutment Remover, emergency screw extraction tools like the Surgident Implant Surgical Screw Removal Kit, replacement screws, and provisional materials. This preparation matters most when a loose or damaged restoration presents unexpectedly during a recall visit.
Master Implant Component Preservation with K-Dental Supplies Global
A damaged abutment should be approached as a component-preservation procedure, not a contest of torque. Mastering a proper abutment removal instrument technique allows clinicians to protect implant integrity, save valuable chair time, and deliver predictable restorative outcomes.
If the abutment is stuck, separate it vertically with the Evidence Implant EZ-SEP Abutment Remover. If the screw is damaged or fractured, retrieve it with a dedicated Surgident Implant Surgical Screw Removal Kit.
