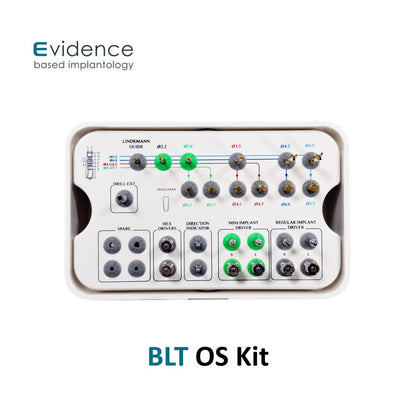

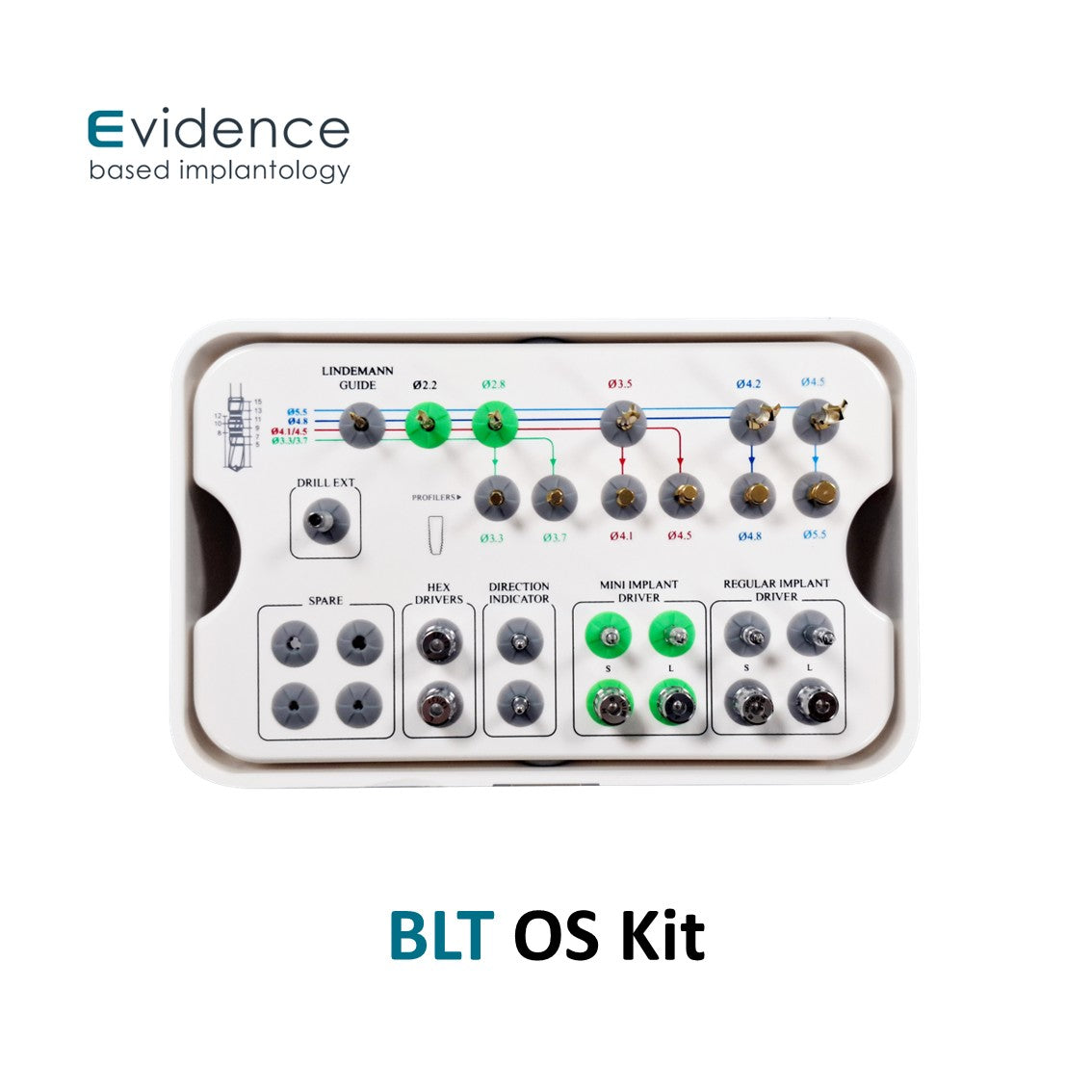

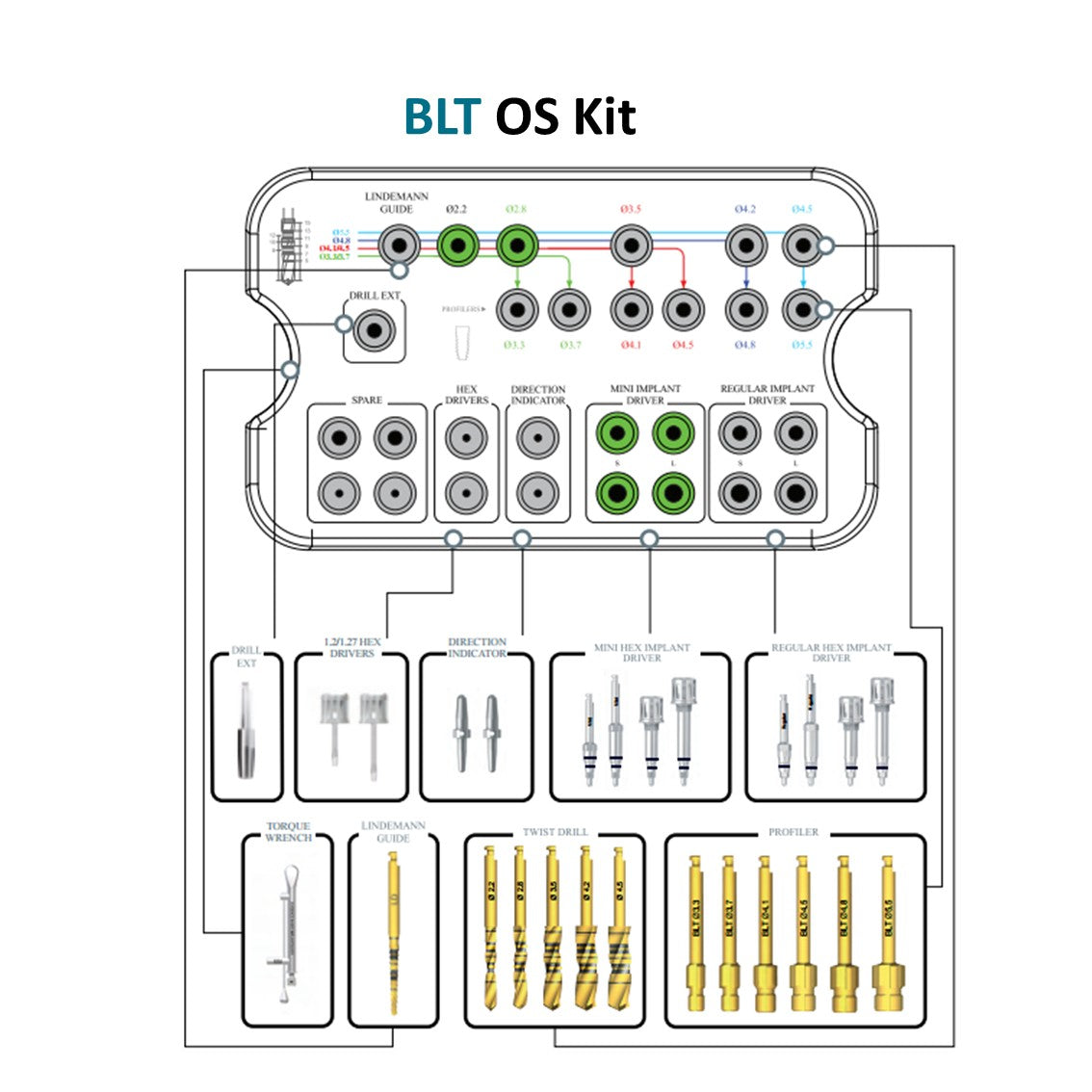

[Bone Level Tapered] OS Implant Surgical Kit

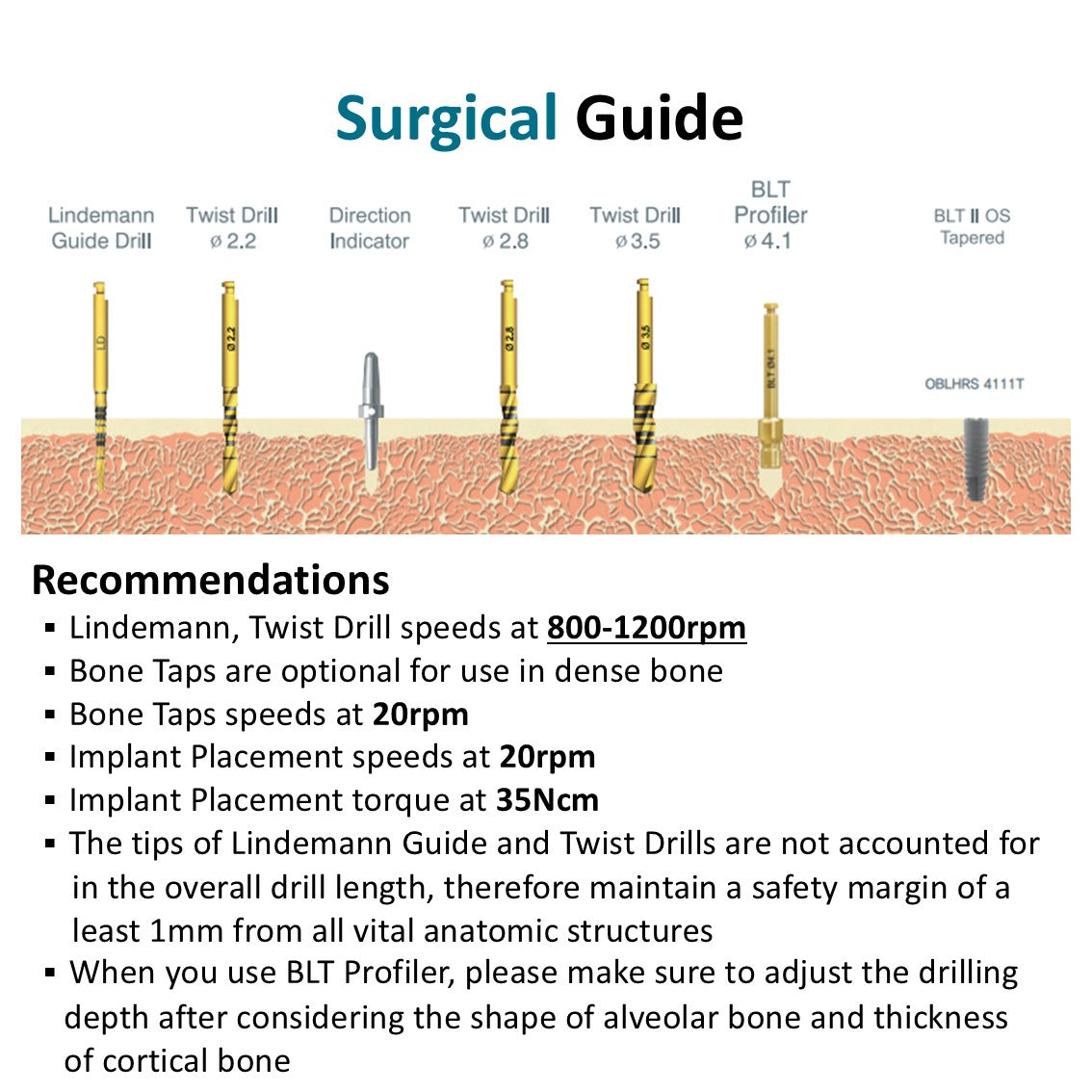

[Surgical Guide]

Recommendations

 ▪ Lindemann, Twist Drill speeds at 800-1200rpm
 ▪ Bone Taps are optional for use in dense bone
 ▪ Bone Taps speeds at 20rpm
 ▪ Implant Placement speeds at 20rpm
 ▪ Implant Placement torque at 35Ncm
 ▪ The tips of Lindemann Guide and Twist Drills are not accounted for in the overall drill length, therefore maintain a safety margin of a least 1mm from all vital anatomic structures
 ▪ When you use BLT Profiler, please make sure to adjust the drilling depth after considering the shape of alveolar bone and thickness of cortical bone
